Module |
0.15 |
|||
|
Rated torque |
D.5 kg.cm max |
|||
|
Max nmnentary toleranee torque |
1.0kg.cm max |
|||
|
Reduction ratio |
1/10 |
1/20、1/30 1/50、1/63 1/100 |
1/110、1/150 1/210、1/250 1/298、1/380 |
1/700 1/1000 |
|
Nimher of genr stages |
2 |
4 |
5 |
7 |
|
L(m) |
9.0 |
12.5 |
||
|
Motor nodel |
Rated voltage |
No,of phase |
Step angle |
Resistance |
Current |
Inductance |
Detent torque |
Holdin torque |

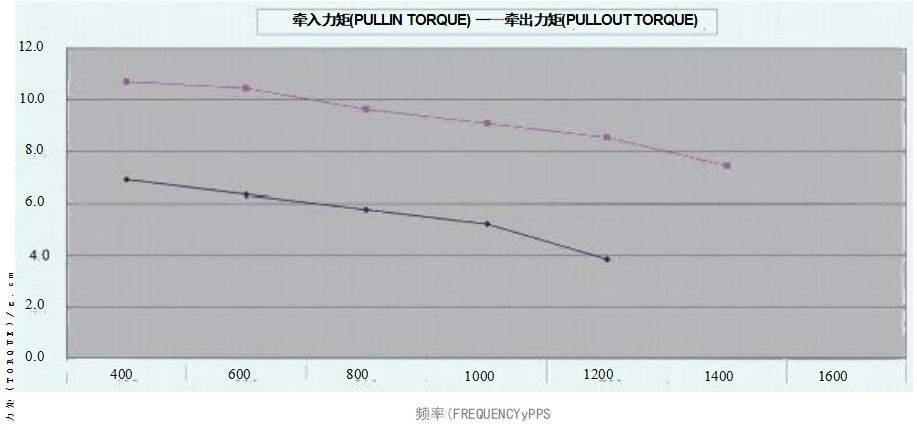

Puil in rate |
|
|
VDC |
|
|
0 |
mA |
mH |
g.cm |
g.cm |
DDS |
|
CCY-108Y-0521 |
5.0 |
2 |
18" |
20 |
250 |
|
3.0 |
2.0 |
500 |
