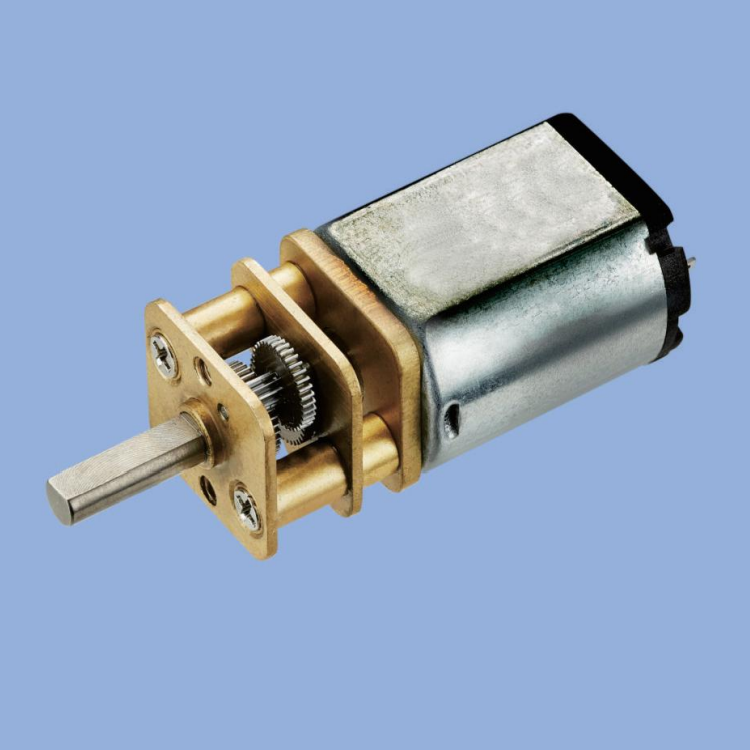

GM13A-030PA DC Spur Gear Motor

GM13A-030PA        DC Spur Gear Motor

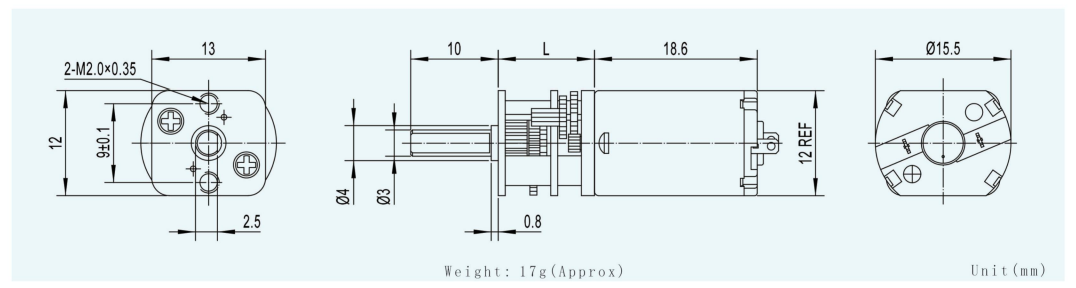

Module 0.15 Rated torque 0.5Kg.cm  max Max momentary tolerance torque 1.0Kg.cm  max Reduction ratio 1/10 1/20,1/30 1/35,1/52/,1/67, 1/85,1/100 1/118,1/150,1/250,1/300,1/360 Gearbox Reduction Stage 2 3 4 5 Gearbox Length L(mm) 11.0
Gear Motor Technical Parameters
Reduction ratio 10 20 30 35 67 85 118 150 250 360 6.0V No-load Speed(rpm) 1100 550 380 310 170 130 95 75 45 30 Rated Load Speed(rpm) 900 450 300 260 140 105 80 60 38 28 Load Torque(Kg.cm) 0.03 0.06 0.1 0.1 0.2 0.25 0.35 0.45 0.5 0.5 12.0V No-load Speed(rpm) 1200 610 410 350 190 140 105 85 50 35 Rated Load Speed(rpm) 975 485 320 280 150 110 85 65 40 30 Load Torque(Kg.cm) 0.03 0.06 0.1 0.12 0.2 0.25 1.63 0.45 0.5 0.5

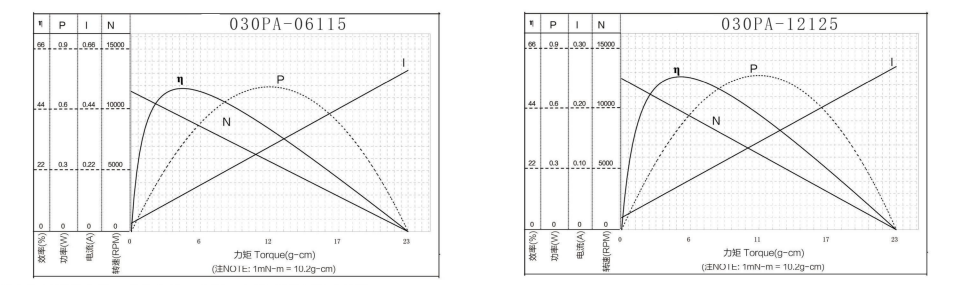

Motor Technical Data
Motor model Rated Voltage No-load Rated Stall Speed Currnet Speed Torque Current Power Torque Current VDC r / min mA r / min g.cm mA W g,.cm A 030PA-06115 6.0 11500 35 9000 5.0 140 0.45 23 0.60 030PA-12125 12.0 12500 20 9800 5.0 75 0.50 23 0.27

The Customizable Parts Iinclude

• Gearbox Parameters: Gear ratio, number of stages, gearbox length, etc.
• Motor Performance: Rated voltage, no-load speed, rated speed, no-load current, rated current, stall current, torque, etc.
• Output Shaft Shape and Size: Customizable output shaft shape and size according to the specific needs of the customer.
• Mounting Method: Different mounting methods and mounting hole positions can be customized according to the customer's application scenario.
• Protection Level: The motor's protection level (such as IP rating) can be customized to enhance water resistance, dust resistance, and impact resistance.
• Torque Limiter: A torque limiting function can be added to protect the motor and load in the event of overload.
• Other: Customization is available based on customer requirements.
