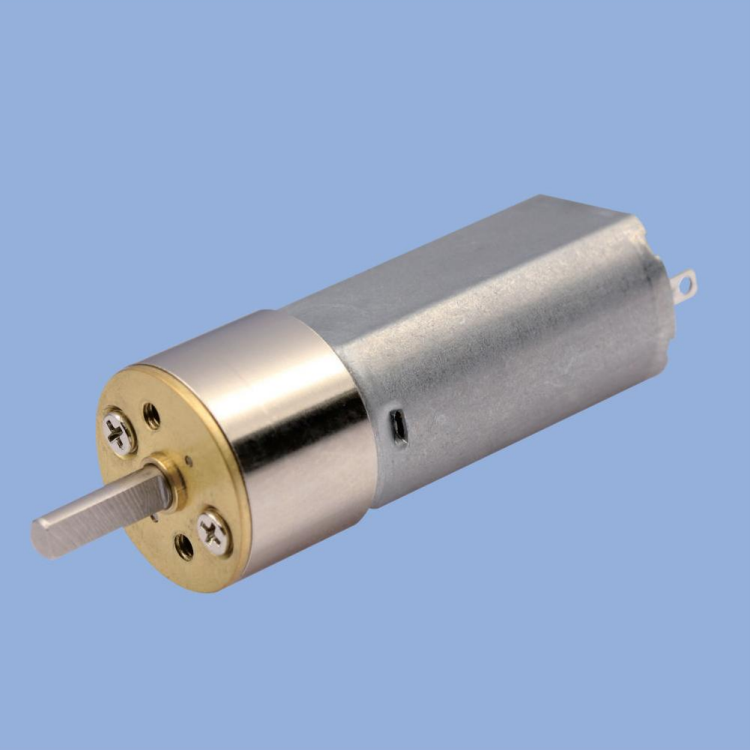

GM16A-050SH DC Spur Gear Motor

GM16A-050SH        DC Spur Gear Motor

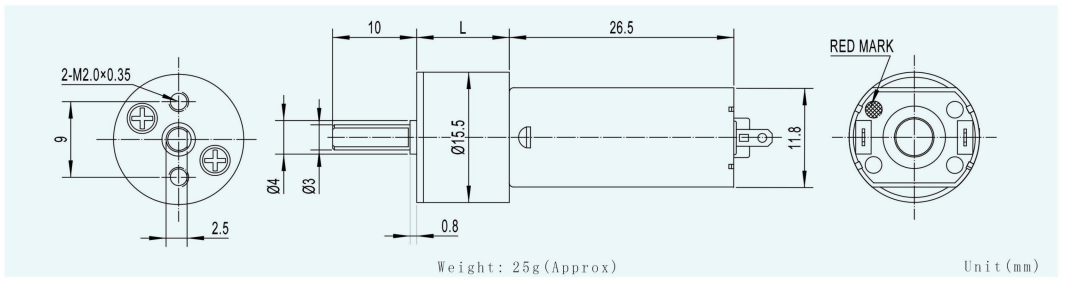

Module 0.15 Rated torque 0.5Kg.cm  max Max momentary tolerance torque 1.0Kg.cm  max Reduction ratio 1/10 1/20,1/30 1/35,1/67, 1/85,1/100 1/118,1/150,1/250,1/300,1/360 Gearbox Reduction Stage 2 3 4 5 Gearbox Length L(mm) 11.0
Gear Motor Technical Parameters
Reduction ratio 10 20 35 67 85 118 150 250 360 6.0V No-load Speed(rpm) 1200 600 340 190 140 105 80 50 35 Rated Load Speed(rpm) 1000 500 285 160 115 92 73 45 33 Load Torque(Kg.cm) 0.08 0.15 0.25 0.45 0.5 0.5 0.5 0.5 0.5 12.0V No-load Speed(rpm) 1230 620 350 200 145 110 85 50 35 Rated Load Speed(rpm) 950 475 270 150 110 82 73 46 33 Load Torque(Kg.cm) 0.08 0.15 0.25 0.45 0.5 0.5 0.5 0.5 0.5
Motor Technical Data
Motor model Rated Voltage No-load Rated Stall Speed Currnet Speed Torque Current Power Torque Current VDC r / min mA r / min g.cm mA W g,.cm A 050PA-06115 6.0 12500 45 10000 10 255 1.03 50 1.30 050PA-12125 12.0 12800 35 9500 10 150 0.99 43 0.55

The Customizable Parts Iinclude

• Gearbox Parameters: Gear ratio, number of stages, gearbox length, etc.
• Motor Performance: Rated voltage, no-load speed, rated speed, no-load current, rated current, stall current, torque, etc.
• Output Shaft Shape and Size: Customizable output shaft shape and size according to the specific needs of the customer.
• Mounting Method: Different mounting methods and mounting hole positions can be customized according to the customer's application scenario.
• Protection Level: The motor's protection level (such as IP rating) can be customized to enhance water resistance, dust resistance, and impact resistance.
• Torque Limiter: A torque limiting function can be added to protect the motor and load in the event of overload.
• Other: Customization is available based on customer requirements.
