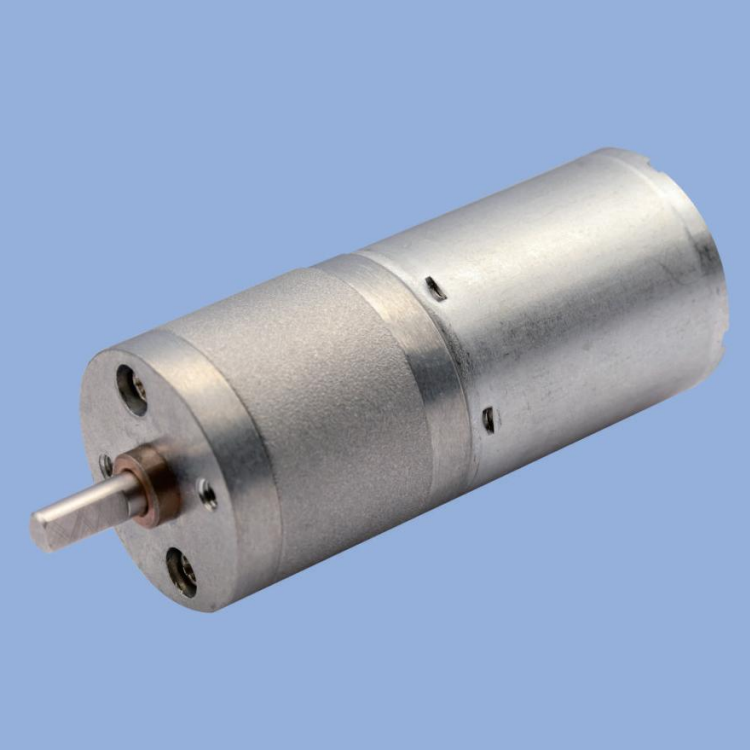

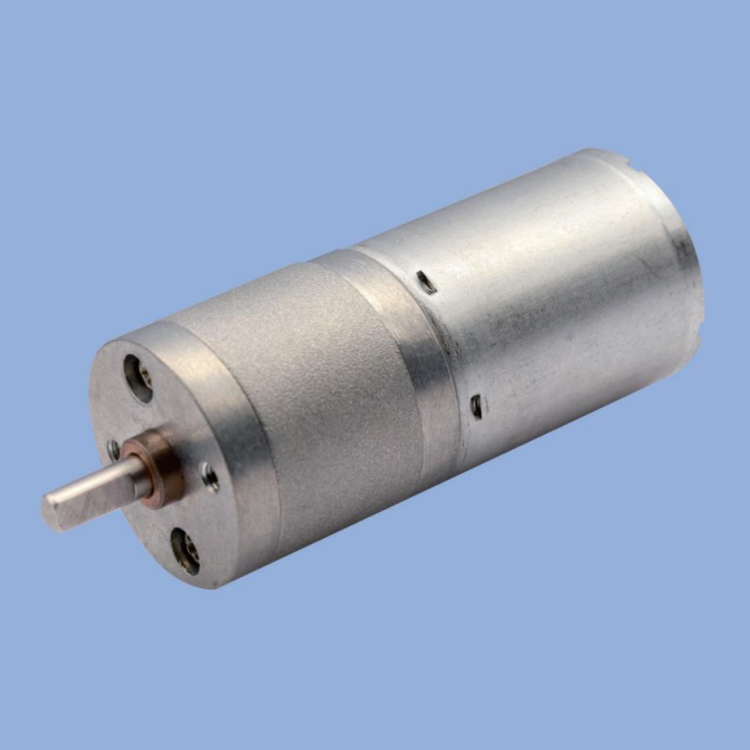

GM25B-2430BL    Brushless Spur Gear Motor

GM25B-2430BL        Brushless Spur Gear Motor

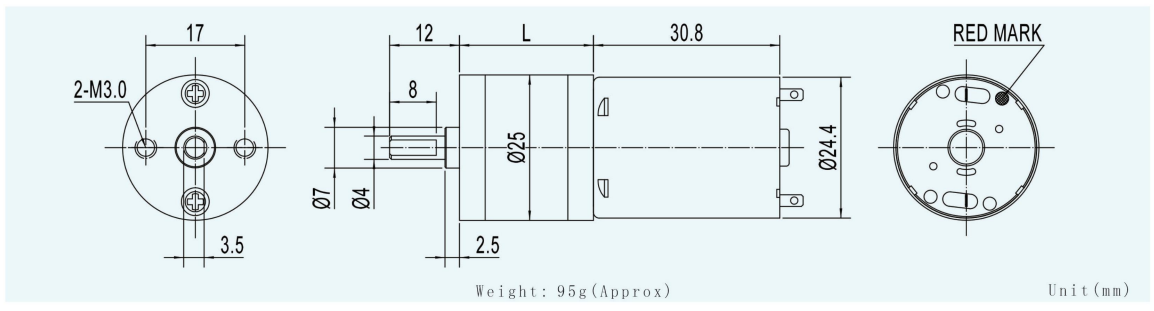

Module 0.4 Rated torque 5.0Kg.cm  max Max momentary tolerance torque 10.0Kg.cm  max Reduction ratio 1/4 1/10 1/20 1/34、1/45、1/47 1/75、1/78、1/99、1/103 1/130、1/165、1/172、1/217、1/227 1/362、1/378、1/478、1/499 Gearbox Reduction Stage 2 3 4 5 6 7 8 Gearbox Length L(mm) 17 19 21 23 25 27
Gear Motor Technical Parameters
Reduction ratio 4 10 20 34 47 78 103 130 227 499 12.0V No-load Speed(rpm) 1350 550 260 160 115 70 52 42 25 11 Rated Load Speed(rpm) 1210 485 230 140 100 60 47 35 20 10 Load Torque(Kg.cm) 0.16 0.34 0.8 1.2 1.6 2.4 3.0 3.0 3.0 3.0 24.0V No-load Speed(rpm) 1350 550 260 160 115 70 52 42 25 11 Rated Load Speed(rpm) 1210 485 230 140 100 60 47 35 20 10 Load Torque(Kg.cm) 0.16 0.34 0.8 1.2 1.6 2.4 3.0 3.0 3.0 3.0

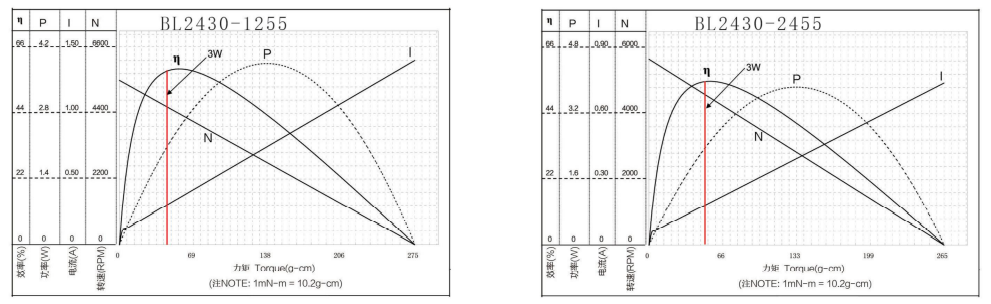

Motor Technical Data
Motor model Rated Voltage No-load Rated Stall Speed Currnet Speed Torque Current Power Torque Current VDC r / min mA r / min g.cm mA W g,.cm A 2430BL-1255 12.0 5500 90 4500 50 330 2.3 270 1.4 2430BL-2455 24.0 5500 50 4500 50 180 2.3 270 0.75

The Customizable Parts Iinclude

• Gearbox Parameters: Gear ratio, number of stages, gearbox length, etc.
• Motor Performance: Rated voltage, no-load speed, rated speed, no-load current, rated current, stall current, torque, etc.
• Output Shaft Shape and Size: Customizable output shaft shape and size according to the specific needs of the customer.
• Mounting Method: Different mounting methods and mounting hole positions can be customized according to the customer's application scenario.
• Protection Level: The motor's protection level (such as IP rating) can be customized to enhance water resistance, dust resistance, and impact resistance.
• Torque Limiter: A torque limiting function can be added to protect the motor and load in the event of overload.
• Other: Customization is available based on customer requirements.
