Module |
0.4 |
||||||
|
Rated torxque |
5.0ku.cm nax |
||||||
|
Max noncntory tolerance torque |
10.0kg,cn max |
||||||
|
Reduction ratio |
1/4 |
1/10 |
1/20 |
1/34 1/45 1/47 |
1/75 /TH 1/99 1/103 |
1/130 1/165 1/172 1/217 1/227 |
1/362 1/378 1/478 1/499 |
|
Nunber of gear stages |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|

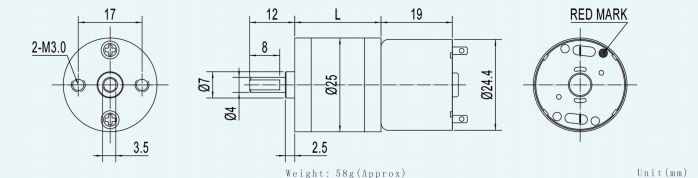

L(mm) |
17 |
19 |
21 |
23 |
25 |
27 |
|
|
Reduction ratio |
4 |
10 |
20 |
34 |
47 |
78 |
103 |
130 |
227 |
499 |
|
|
6.0V |
No-load spoed(rrm) |
1200 |
480 |
240 |
145 |
105 |
60 |
50 |
37 |
21 |
10 |
|
|
Rated speed(rpm |
1050 |
420 |
210 |
120 |
90 |
55 |
40 |
32 |
19 |
8 |
|
|
Rated torque(kg.cm) |
0.04 |
0.08 |
0.15 |
0.25 |
0.3 |
0.5 |
0.6 |
0.8 |
1.1 |
2.5 |
|
12.0V |
No-1oad speed(rpm) |
1600 |
650 |
320 |
200 |
140 |
85 |
65 |
50 |
10 |
13 |
|
|
Rated speod(rm) |
1500 |
600 |
290 |
180 |
125 |
75 |
58 |
45 |
25 |
12 |
|
|
Rnted torque(kug.cm) |
0.04 |
0.08 |
0.15 |
0.25 |
0.3 |
0.5 |
0.6 |
0.8 |
1.1 |
2.5 |
Motor Technica lata
|
Motor model |
Rated voltage |
So-load |
R a t e d |
S t a l l |
|||||
|
Speed |
Crrent |
Speed |
Torque |
Current |
Rwer |
Torgue |
Current |
||
|
VDC |
r/min |
mA |
r/min |
g.cm |
mA |
W |
B.cm |
A |
|
|

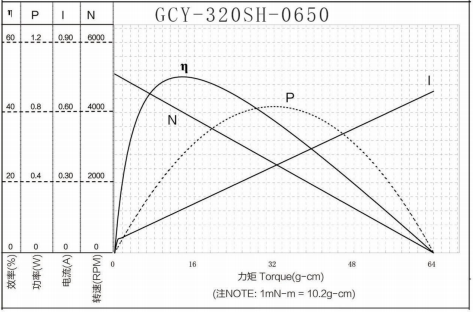

GCY-320SH-0650 |
6.0 |
5000 |
50 |
4200 |
10 |
150 |
0.43 |
63 |
0.70 |
|

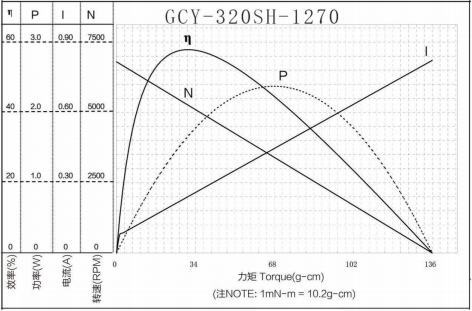

GCY-320SH-1270 |
12.0 |
7000 |
35 |
6000 |
10 |
95 |
0.61 |
70 |
0.45 |
