Module |
0.4 |
||||||
|
Rated torque |
5.0 kg,cm max |
||||||
|
Max nonentary tolerance torque |
10.0 kg.cn nux |
||||||
|
Redaction ratio |
1/4 |
1/10 |
1/2 |
1/34 1/45 1/47 |
1/75 1/T8 1/99 1/103 |
1/130 /165 1/172 1/217 1/227 |
1/362 1/378 1/478 1/499 |
|
Number of gear stages |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|

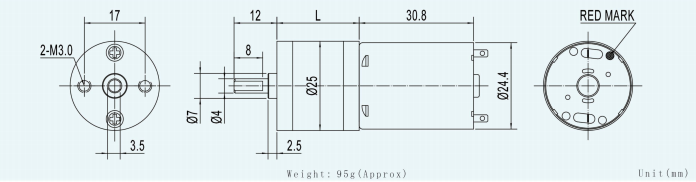

L(m) |
17 |
19 |
21 |
23 |
25 |
27 |
|
|
Reduction ratio |
4 |
10 |
20 |
34 |
45 |
78 |
99 |
130 |
217 |
478 |
|
|
6.0V |
Mo-loal speed(rm) |
1250 |
500 |
250 |
145 |
110 |
65 |
50 |
38 |
23 |
10 |
|
|
Rated speedfrx) |
1130 |
450 |
22D |
130 |
100 |
60 |
45 |
35 |
20 |
9 |
|
|
Rated torque(kg.cm) |
0.08 |
0.17 |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.0 |
2.8 |
5.0 |
|
12.0V |
No-loed speed(rm |
1250 |
500 |
250 |
145 |
110 |
65 |
50 |
38 |
23 |
10 |
|
|
Rated speed(ram) |
1130 |
450 |
22D |
130 |
100 |
60 |
45 |
35 |
20 |
9 |
|
|
Rted torquo(kg.cm) |
0.08 |
0.17 |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.0 |
2.8 |
5.0 |
|
Motor model |
Rated voltage |
Mo-1cad |
Rated |
Stall |
||||||
|
|
|
Speed |
Current |
Speed |
Torque |
Cirrent |
Rwer |
Toruue |
Current |
|
|
|
VDC |
r/min |
mA |
T/min |
g.cm |
mA |
W |
g.Cm |
A |
|
|

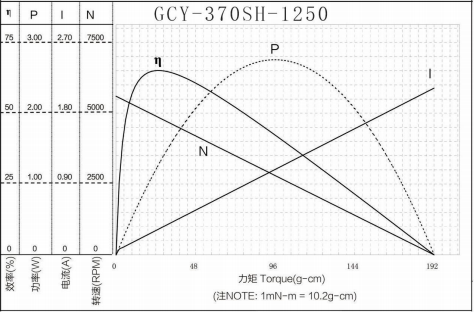

GCY-370SH-1250 |
12.0 |
5000 |
30 |
4550 |
25 |
120 |
1.16 |
270 |
3.0 |
|
|

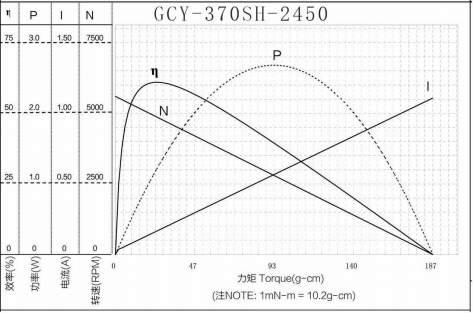

GCY-370SH-2450 |
24.0 |
5000 |
15 |
4550 |
25 |
60 |
1.16 |
270 |
1.5 |
|
