Module |
0.5/0.6 |
||||
|
Rated torque |
8.0 kg.cmnax |
||||
|
Max nonentary tolerance torque |
15.0 kg.cn max |
||||
|
Redaction ratio |
1/6 1/10 |
1/19 1/30 |
1/44 1/56 1/90 |
1/131 1/169 1/270 |
1/506 1/810 |
|
Number of gear stages |
2 |
3 |
4 |
5 |
6 |
|

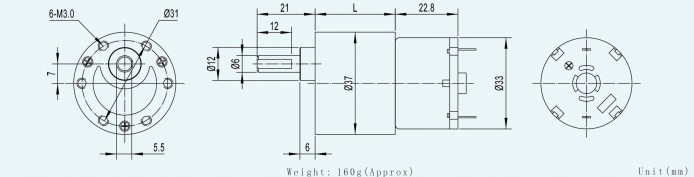

L(mm) |
19 |
21.5 |
24 |
26.5 |
29 |
|
Reduction ratio |
6 |
10 |
19 |
30 |
56 |
90 |
169 |
270 |
506 |
810 |
|
|
12.0V |
Mo-loal speed(rm) |
750 |
4801 |
250 |
1601 |
88 |
55 |
30 |
18 |
10 |
6 |
|
|
Rated speedfrx) |
690 |
420 |
225 |
140 |
77 |
48 |
25 |
16 |
8 |
5 |
|
|
Rated torque(kg.cm) |
0.1 |
0.2 |
0.3 |
0.4 |
0.8 |
1.2 |
2.0 |
3.2 |
5.0 |
8.0 |
|
24.0V |
No-loed speed(rm |
800 |
490 |
250 |
160 |
85 |
5 |
3) |
18 |
10 |
6 |
|
|
Rated speed(rpm) |
70M) |
420 |
210 |
140 |
75 |
50 |
26 |
16 |
8 |
5 |
|
|
Rted torquo(kg.cm) |
0.1 |
0.2 |
0.3 |
0.4 |
0.8 |
1.2 |
2.0 |
3.2 |
5.0 |
8.0 |
|
Motor model |
Rated voltage |
Mo-1cad |
R a t e d |
S t a l l |
||||||
|
|
|
Speed |
Current |
Speed |
Torque |
Cirrent |
Rwer |
Torque |
Current |
|
|
|
VDC |
r/min |
mA |
T/min |
g.cm |
mA |
W |
g.cm |
A |
|
|

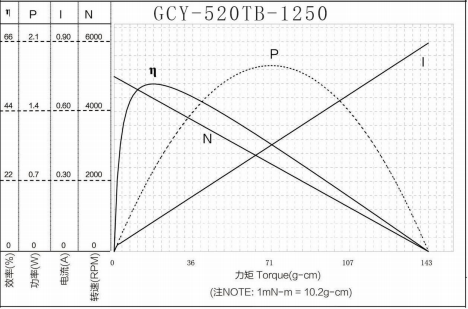

LX-520TB-1250 |
12.0 |
5000 |
20 |
4300 |
20 |
120 |
0.88 |
140 |
0.9 |
|
|

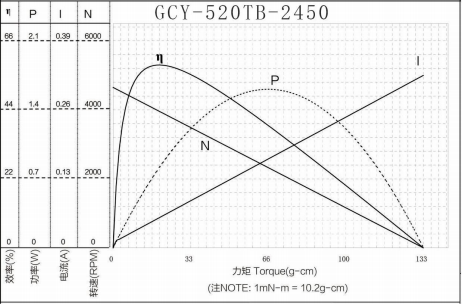

LX-520TB-2450 |
24.0 |
4950 |
12 |
4150 |
20 |
60 |
0.82 |
130 |
0.4 |
|
