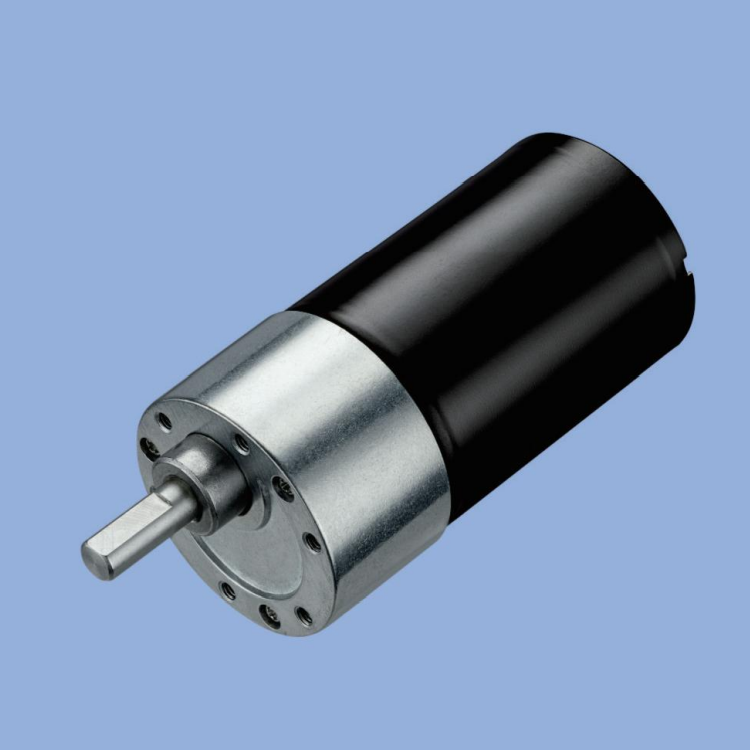

GM37B-BL3650 Brushless Spur Gear Reducer Motor

GM37B-BL3650        Brushless Spur Gear Reducer Motor

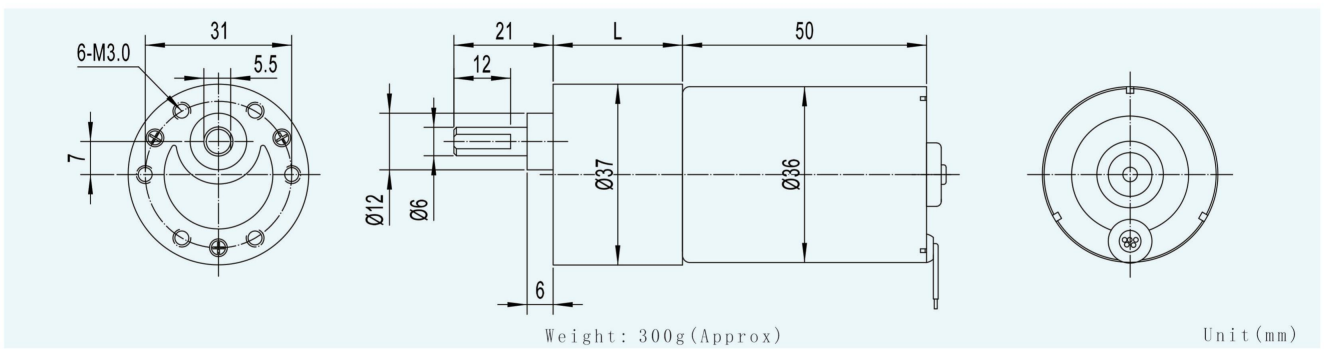

Module 0.5  /  0.6 Rated torque 8.0Kg.cm  max Max momentary tolerance torque 15.0Kg.cm  max Reduction ratio 1/6、1/10 1/19、1/30 1/44、1/56、1/90 1/131、1/169、1/270 1/506、1/810 Gearbox Reduction Stage 2 3 4 5 6 Gearbox Length L(mm) 19 21.5 24 26.5 29
Gear Motor Technical Parameters
Reduction ratio 6 10 30 44 56 90 169 270 506 810 12.0V No-load Speed(rpm) 1000 630 210 145 115 70 38 24 13 8 Rated Load Speed(rpm) 850 530 175 120 93 60 32 20 11 7 Load Torque(Kg.cm) 1.0 1.6 4.5 6.0 8.0 10 10.0 10 10.0 10.0 24.0V No-load Speed(rpm) 630 400 130 90 70 43 24 15 8 5 Rated Load Speed(rpm) 540 340 110 77 60 38 20 13 7 4 Load Torque(Kg.cm) 1.0 1.6 4.5 6.0 8.0 10.0 10.0 10 10 10.0

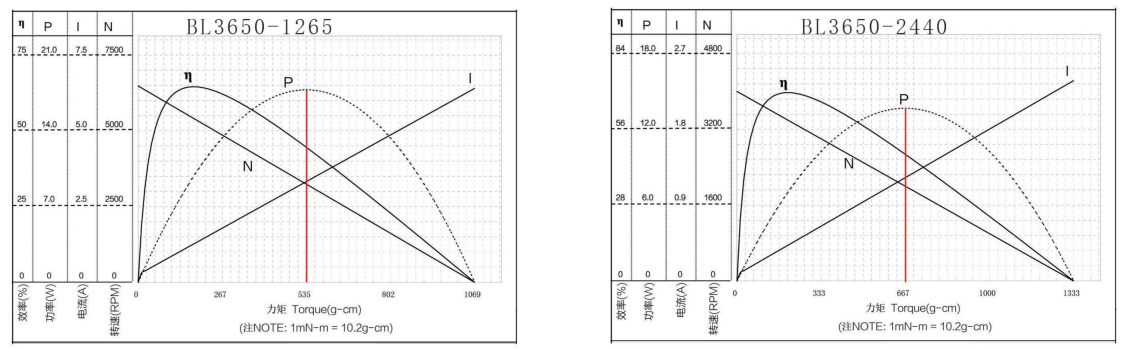

Motor Technical Data
Motor model Rated Voltage No-load Rated Stall Speed Currnet Speed Torque Current Power Torque Current VDC r / min mA r / min g.cm mA W g,.cm A BL3650-1265 12.0 6500 250 5300 200 1400 11 1050 4.0 BL3650-2440 24.0 4000 80 3400 200 420 7 1300 2.4

The Customizable Parts Iinclude

• Gearbox Parameters: Gear ratio, number of stages, gearbox length, etc.
• Motor Performance: Rated voltage, no-load speed, rated speed, no-load current, rated current, stall current, torque, etc.
• Output Shaft Shape and Size: Customizable output shaft shape and size according to the specific needs of the customer.
• Mounting Method: Different mounting methods and mounting hole positions can be customized according to the customer's application scenario.
• Protection Level: The motor's protection level (such as IP rating) can be customized to enhance water resistance, dust resistance, and impact resistance.
• Torque Limiter: A torque limiting function can be added to protect the motor and load in the event of overload.
• Other: Customization is available based on customer requirements.
