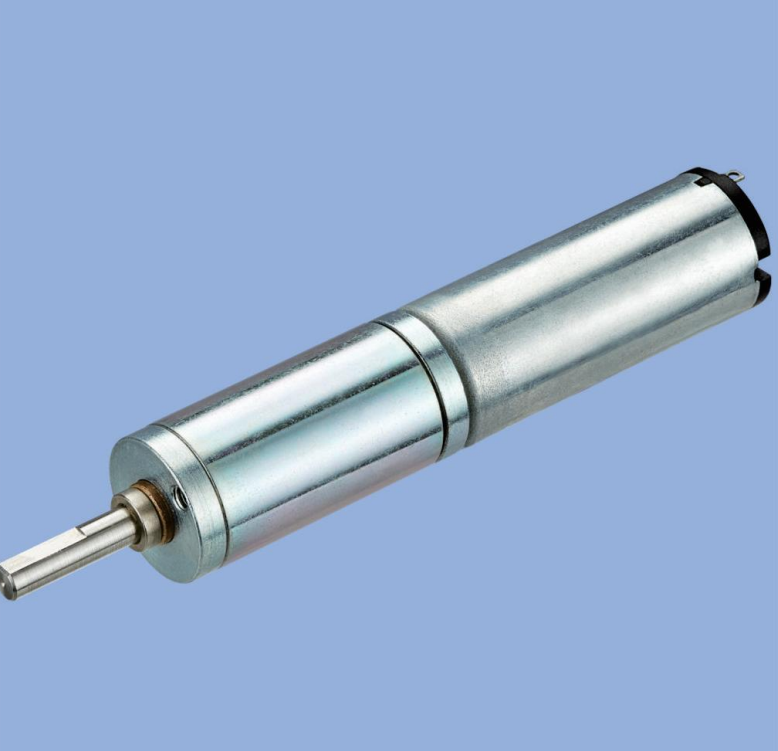

GMP12A-1230CA Coreless Planetary Gear Motor

GMP12A-1230CA        Coreless Planetary Gear Motor

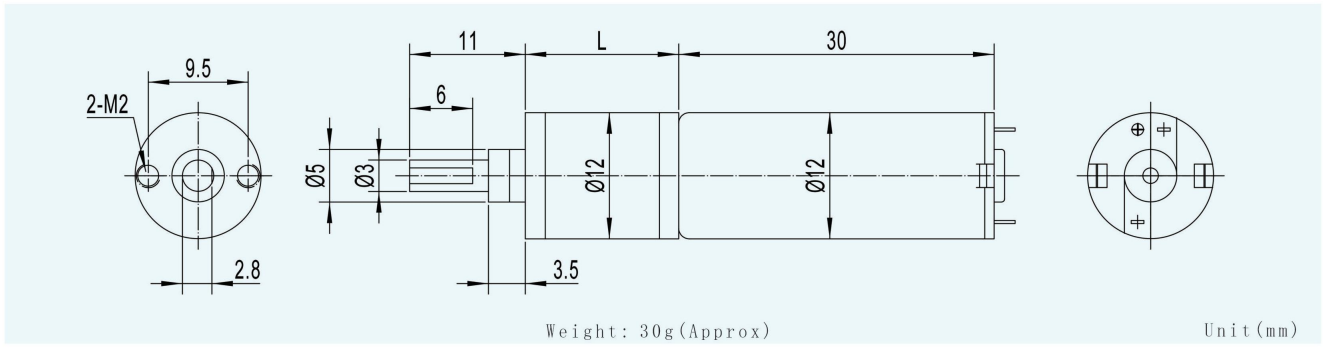

Module 0.25 Rated torque 2.0Kg.cm  max Max momentary tolerance torque 4.0Kg.cm  max Reduction ratio 1/4 1/16 1/64 1/256 1/1024 1/4096 Gearbox Reduction Stage 1 2 3 4 5 6 Gearbox Length L(mm) 14.5 17.5 20.5 23.5 26.5 29.6
Gear Motor Technical Parameters
Reduction ratio 4 16 64 256 1024 4096 6.0V No-load Speed(rpm) 3700 930 230 58 14 4 Rated Load Speed(rpm) 3000 750 190 47 12 3 Load Torque(Kg.cm) 0.018 0.08 0.2 0.7 2.0 2.0 12.0V No-load Speed(rpm) 3700 930 230 58 14 4 Rated Load Speed(rpm) 3000 750 190 47 12 3 Load Torque(Kg.cm) 0.018 0.08 0.2 0.7 2.0 2.0

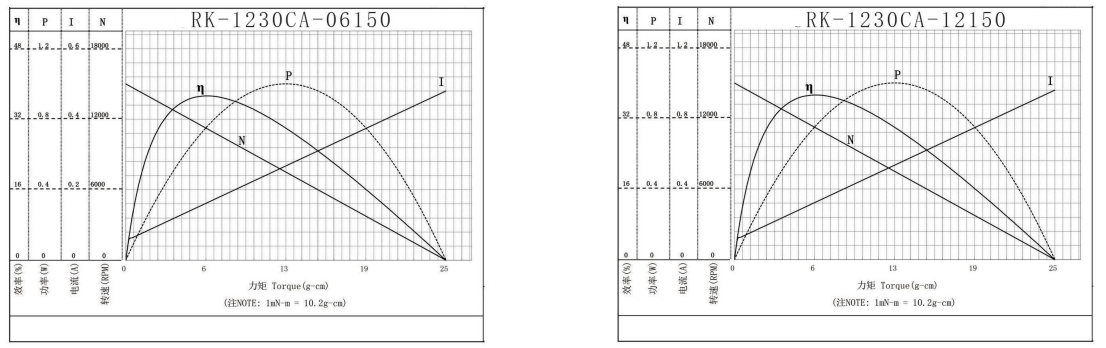

Motor Technical Data
Motor model Rated Voltage No-load Rated Stall Speed Currnet Speed Torque Current Power Torque Current VDC r / min mA r / min g.cm mA W g,.cm A RK-1230CA-06150 6.0 15000 110 12000 5 260 0.62 25 0.96 RK-1230CA-12150 12.0 15000 60 12000 5 130 0.62 25 0.48

The Customizable Parts Iinclude

• Gearbox Parameters: Gear ratio, number of stages, gearbox length, etc.
• Motor Performance: Rated voltage, no-load speed, rated speed, no-load current, rated current, stall current, torque, etc.
• Output Shaft Shape and Size: Customizable output shaft shape and size according to the specific needs of the customer.
• Mounting Method: Different mounting methods and mounting hole positions can be customized according to the customer's application scenario.
• Protection Level: The motor's protection level (such as IP rating) can be customized to enhance water resistance, dust resistance, and impact resistance.
• Torque Limiter: A torque limiting function can be added to protect the motor and load in the event of overload.
• Other: Customization is available based on customer requirements.
