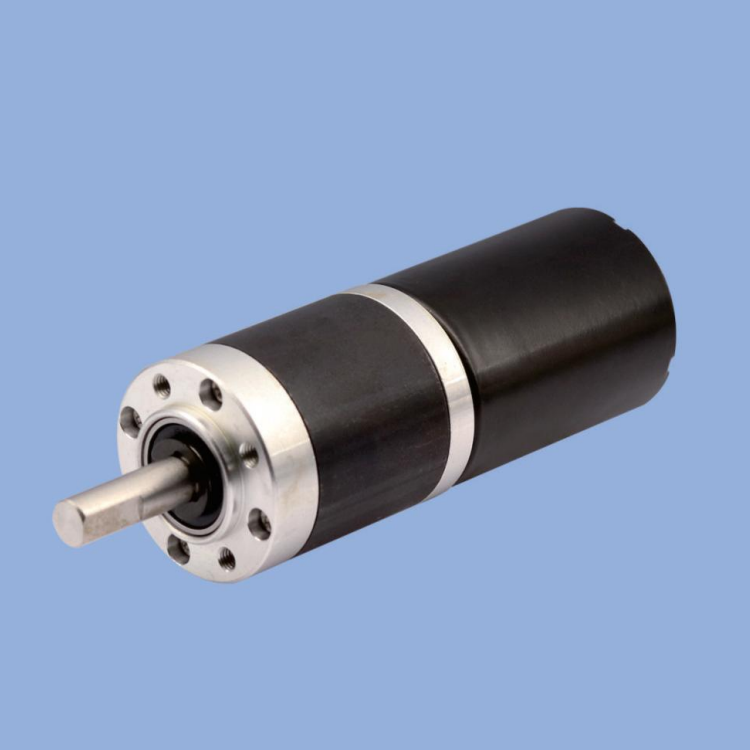

GMP28A-BL2838 BLDC Planetary Gear Reduction Motor

GMP28A-BL2838        BLDC Planetary Gear Reduction Motor

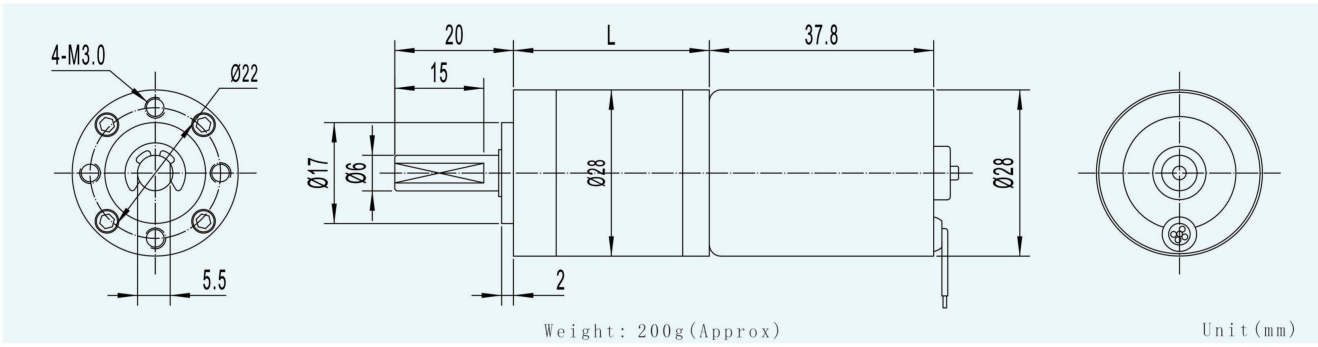

Module 0.5 Rated torque 20.0Kg.cm  max Max momentary tolerance torque 40.0Kg.cm  max Reduction ratio 1/4、1/5 1/16、1/20、1/25 1/64、1/80、1/100、1/125 1/256、1/320、1/400、1/500、1/625 Gearbox Reduction Stage 1 2 3 4 Gearbox Length L(mm) 29 36 43 50
Gear Motor Technical Parameters
Reduction ratio 4 16 20 64 100 125 256 320 400 500 12.0V No-load Speed(rpm) 1250 310 250 78 50 40 20 15 12 10 Rated Load Speed(rpm) 1050 265 215 66 42 33 16 13 10 9 Load Torque(Kg.cm) 0.4 1.3 1.6 4.5 7.0 9.0 16 20 20 20 24.0V No-load Speed(rpm) 1250 310 250 78 50 40 20 15 12 10 Rated Load Speed(rpm) 1060 270 220 66 44 33 16 13 10 9 Load Torque(Kg.cm) 0.4 1.3 1.6 4.5 4.5 9.0 16 20 20 20

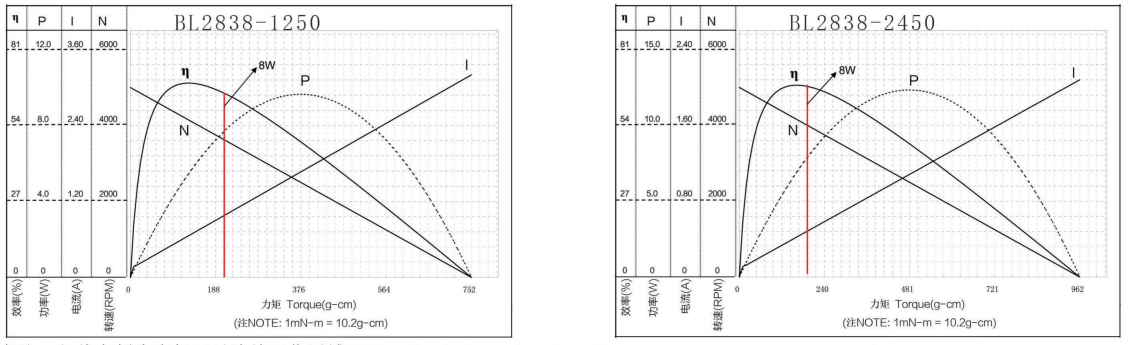

Motor Technical Data
Motor model Rated Voltage No-load Rated Stall Speed Currnet Speed Torque Current Power Torque Current VDC r / min mA r / min g.cm mA W g,.cm A BL2838-1250 12.0 5000 140 4200 100 550 4.3 750 3.2 BL2838-2450 24.0 5000 90 4400 100 300 4.5 960 2.1

The Customizable Parts Iinclude

• Gearbox Parameters: Gear ratio, number of stages, gearbox length, etc.
• Motor Performance: Rated voltage, no-load speed, rated speed, no-load current, rated current, stall current, torque, etc.
• Output Shaft Shape and Size: Customizable output shaft shape and size according to the specific needs of the customer.
• Mounting Method: Different mounting methods and mounting hole positions can be customized according to the customer's application scenario.
• Protection Level: The motor's protection level (such as IP rating) can be customized to enhance water resistance, dust resistance, and impact resistance.
• Torque Limiter: A torque limiting function can be added to protect the motor and load in the event of overload.
• Other: Customization is available based on customer requirements.
