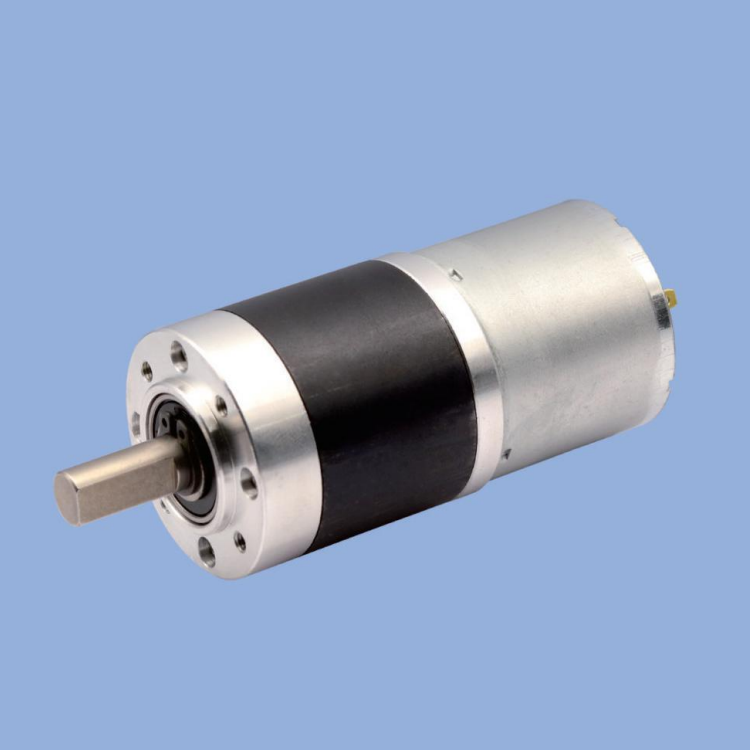

GMP36A-3530 DC Planetary Gear Motor

GMP36A-3530        DC Planetary Gear Motor

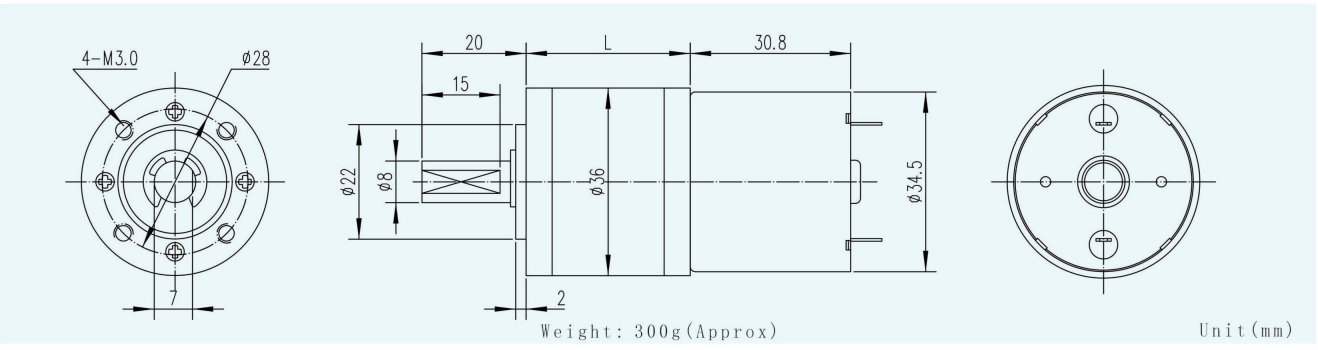

Module 0.5 Rated torque 20.0Kg.cm  max Max momentary tolerance torque 60.0Kg.cm  max Reduction ratio 1/4 1/14、1/19、1/27 1/51、1/71、1/100、1/139 1/189、1/264、1/369、1/516、1/720 Gearbox Reduction Stage 1 2 3 4 Gearbox Length L(mm) 26.7 33.7 40.7 47.7
Gear Motor Technical Parameters
Reduction ratio 4 19 51 100 139 189 264 369 516 720 12.0V No-load Speed(rpm) 1200 250 95 48 35 25 20 13 10 7 Rated Load Speed(rpm) 1100 230 85 45 30 23 16 12 9 6 Load Torque(Kg.cm) 0.18 0.6 1.5 3.2 3.9 5 7 9 12 17 24.0V No-load Speed(rpm) 1300 290 110 55 40 30 20 15 11 8 Rated Load Speed(rpm) 1200 255 95 50 35 25 18 13 9 7 Load Torque(Kg.cm) 0.18 0.6 1.5 3 4 5 7 9 12 17

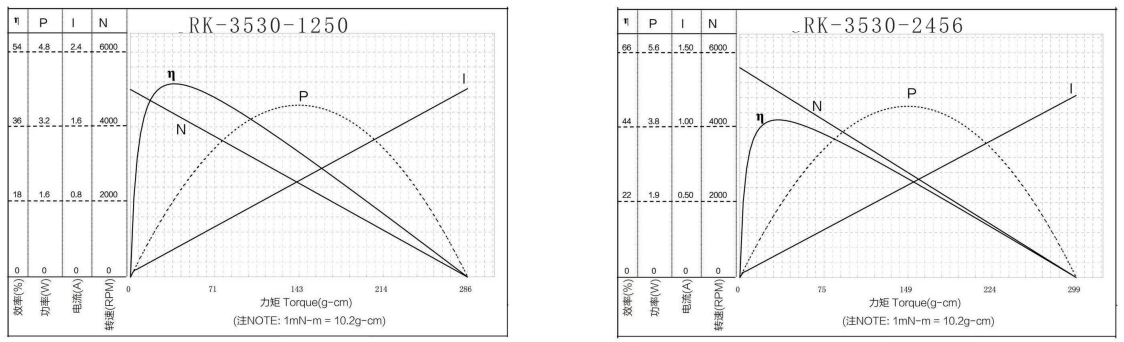

Motor Technical Data
Motor model Rated Voltage No-load Rated Stall Speed Currnet Speed Torque Current Power Torque Current VDC r / min mA r / min g.cm mA W g.cm A BL2838-1250 12.0 5000 45 4300 40 320 1.8 286 2.0 BL2838-2450 24.0 5600 20 4850 40 180 2.0 300 1.2

The Customizable Parts Iinclude

• Gearbox Parameters: Gear ratio, number of stages, gearbox length, etc.
• Motor Performance: Rated voltage, no-load speed, rated speed, no-load current, rated current, stall current, torque, etc.
• Output Shaft Shape and Size: Customizable output shaft shape and size according to the specific needs of the customer.
• Mounting Method: Different mounting methods and mounting hole positions can be customized according to the customer's application scenario.
• Protection Level: The motor's protection level (such as IP rating) can be customized to enhance water resistance, dust resistance, and impact resistance.
• Torque Limiter: A torque limiting function can be added to protect the motor and load in the event of overload.
• Other: Customization is available based on customer requirements.
