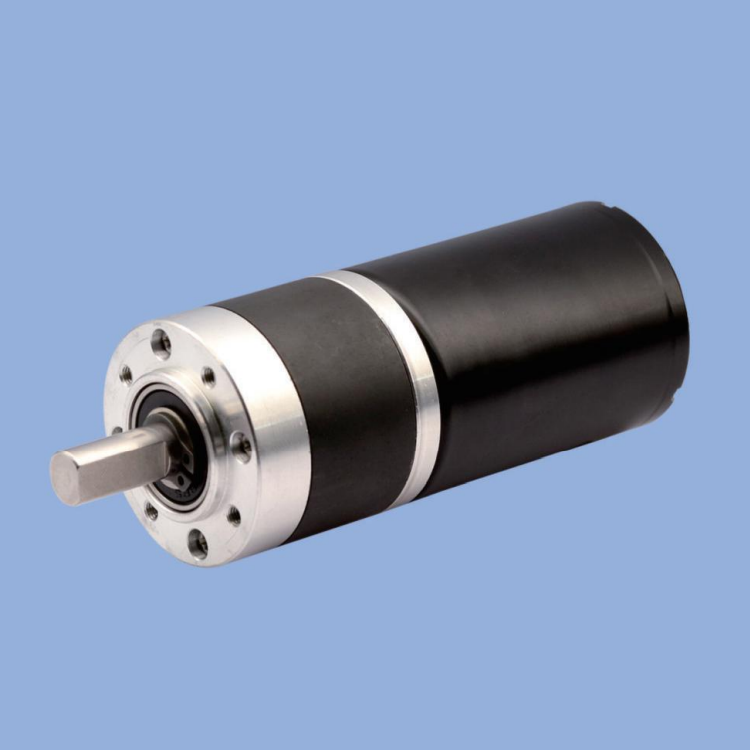

GMP36A-BL3650 BLDC Planetary Gear Reduction Motor

GMP36A-BL3650        BLDC Planetary Gear Reduction Motor

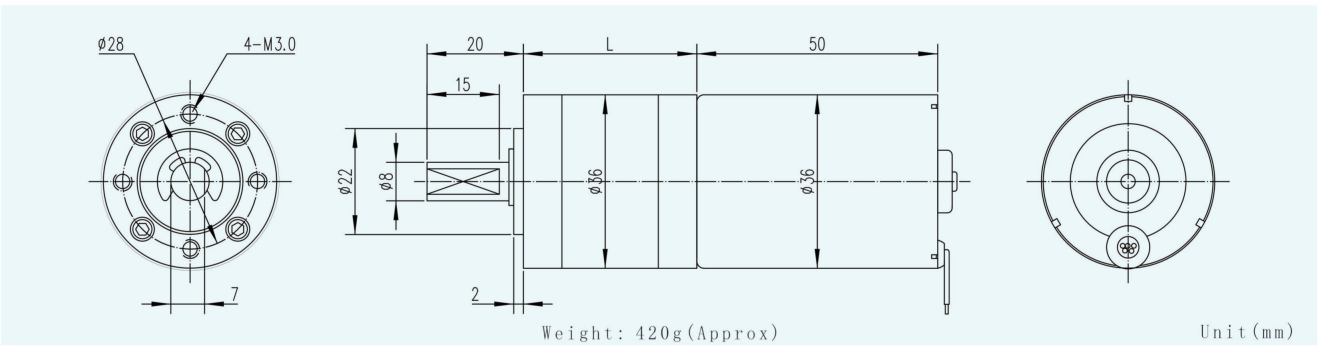

Module 0.5 Rated torque 30.0Kg.cm  max Max momentary tolerance torque 60.0Kg.cm  max Reduction ratio 1/4 1/14、1/19、1/27 1/51、1/71、1/100、1/139 1/189、1/264、1/369、1/516、1/720 Gearbox Reduction Stage 1 2 3 4 Gearbox Length L(mm) 26.7 33.7 40.7 47.7
Gear Motor Technical Parameters
Reduction ratio 4 19 51 100 139 189 264 369 516 720 12.0V No-load Speed(rpm) 1600 340 125 63 45 35 25 18 12 9 Rated Load Speed(rpm) 1320 280 100 53 38 28 20 15 10 8 Load Torque(Kg.cm) 0.7 3.0 8 15 20 28 30 30 30 30 24.0V No-load Speed(rpm) 1000 200 78 40 28 20 15 11 8 5 Rated Load Speed(rpm) 850 180 65 35 25 18 13 10 7 4 Load Torque(Kg.cm) 0.7 3.0 8 15 20 28 30 30 30 30

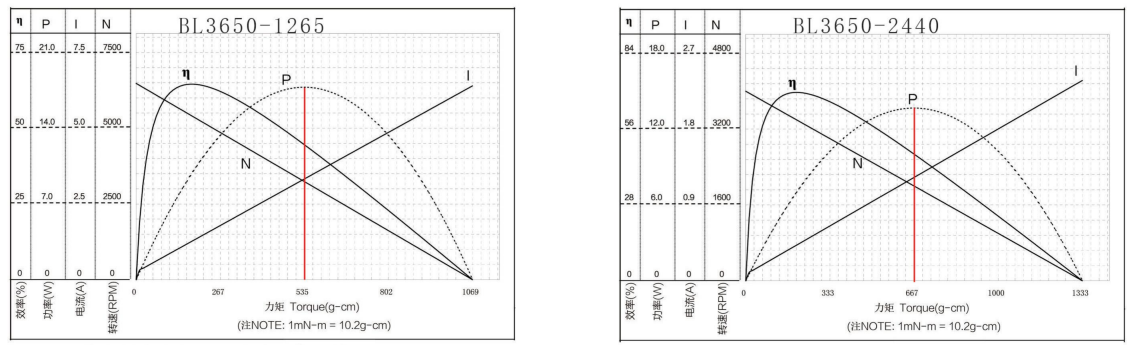

Motor Technical Data
Motor model Rated Voltage No-load Rated Stall Speed Currnet Speed Torque Current Power Torque Current VDC r / min mA r / min g.cm mA W g.cm A BL3650-1265 12.0 6500 250 5300 200 1400 11 1050 4.0 BL3650-2440 24.0 4000 80 3400 200 420 7 1300 2.4

The Customizable Parts Iinclude

• Gearbox Parameters: Gear ratio, number of stages, gearbox length, etc.
• Motor Performance: Rated voltage, no-load speed, rated speed, no-load current, rated current, stall current, torque, etc.
• Output Shaft Shape and Size: Customizable output shaft shape and size according to the specific needs of the customer.
• Mounting Method: Different mounting methods and mounting hole positions can be customized according to the customer's application scenario.
• Protection Level: The motor's protection level (such as IP rating) can be customized to enhance water resistance, dust resistance, and impact resistance.
• Torque Limiter: A torque limiting function can be added to protect the motor and load in the event of overload.
• Other: Customization is available based on customer requirements.
