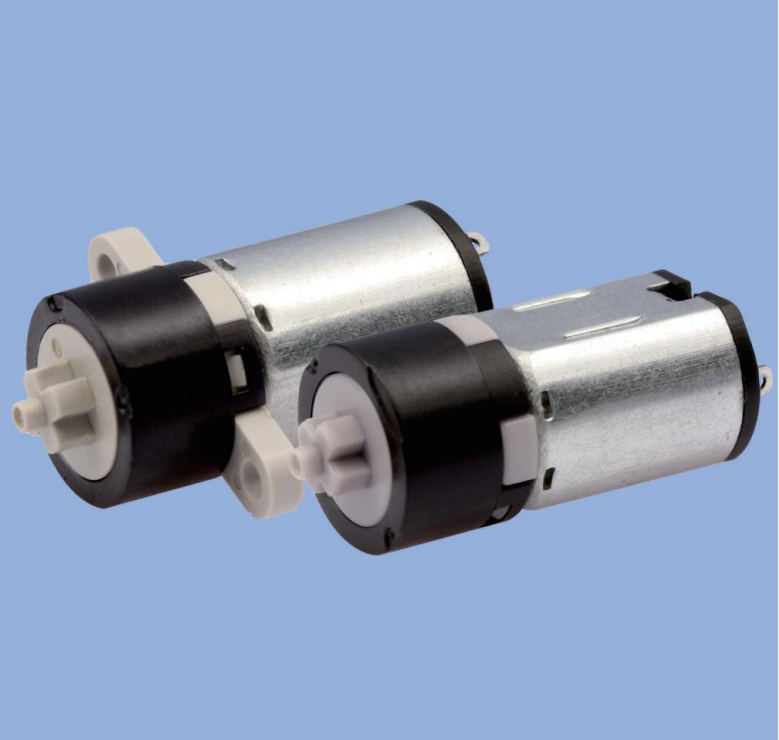

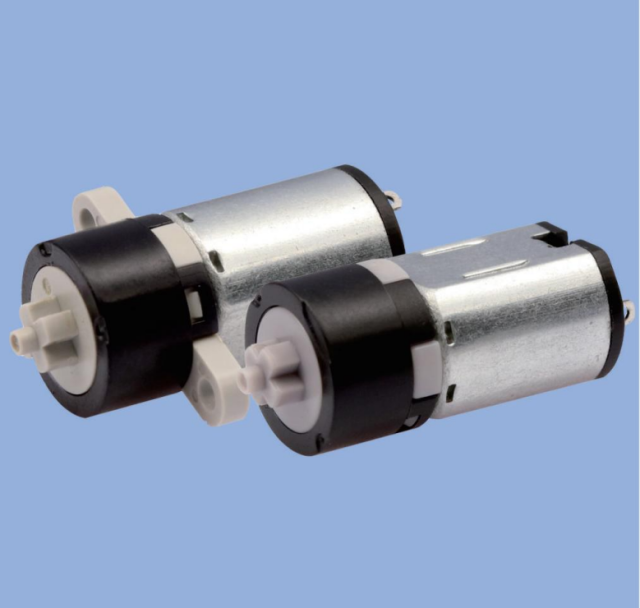

GMPP10A-M10VA  DC Planetary Gear Motor

GMPP10A-M10VA        DC Planetary Gear Motor
Module 0.15 Rated torque 0.1Kg.cm max Max momentary tolerance torque 0.2Kg.cm max Reduction ratio 1/171 Gearbox Reduction Stage 2 Gearbox Length L(mm) 7.0
Motor Technical Data
Motor model Rated Voltage No-load Rated Stall Speed Currnet Speed Torque Current Power Torque Current VDC r / min mA r / min g.cm mA W g.cm A GMPP-M10VA-0370 3.0 70 30 150 0.28 GMPP-M10VA-03110 3.0 100 70 290 0.51

The Customizable Parts Iinclude

• Gearbox Parameters: Gear ratio, number of stages, gearbox length, etc.
• Motor Performance: Rated voltage, no-load speed, rated speed, no-load current, rated current, stall current, torque, etc.
• Output Shaft Shape and Size: Customizable output shaft shape and size according to the specific needs of the customer.
• Mounting Method: Different mounting methods and mounting hole positions can be customized according to the customer's application scenario.
• Protection Level: The motor's protection level (such as IP rating) can be customized to enhance water resistance, dust resistance, and impact resistance.
• Torque Limiter: A torque limiting function can be added to protect the motor and load in the event of overload.
• Other: Customization is available based on customer requirements.
